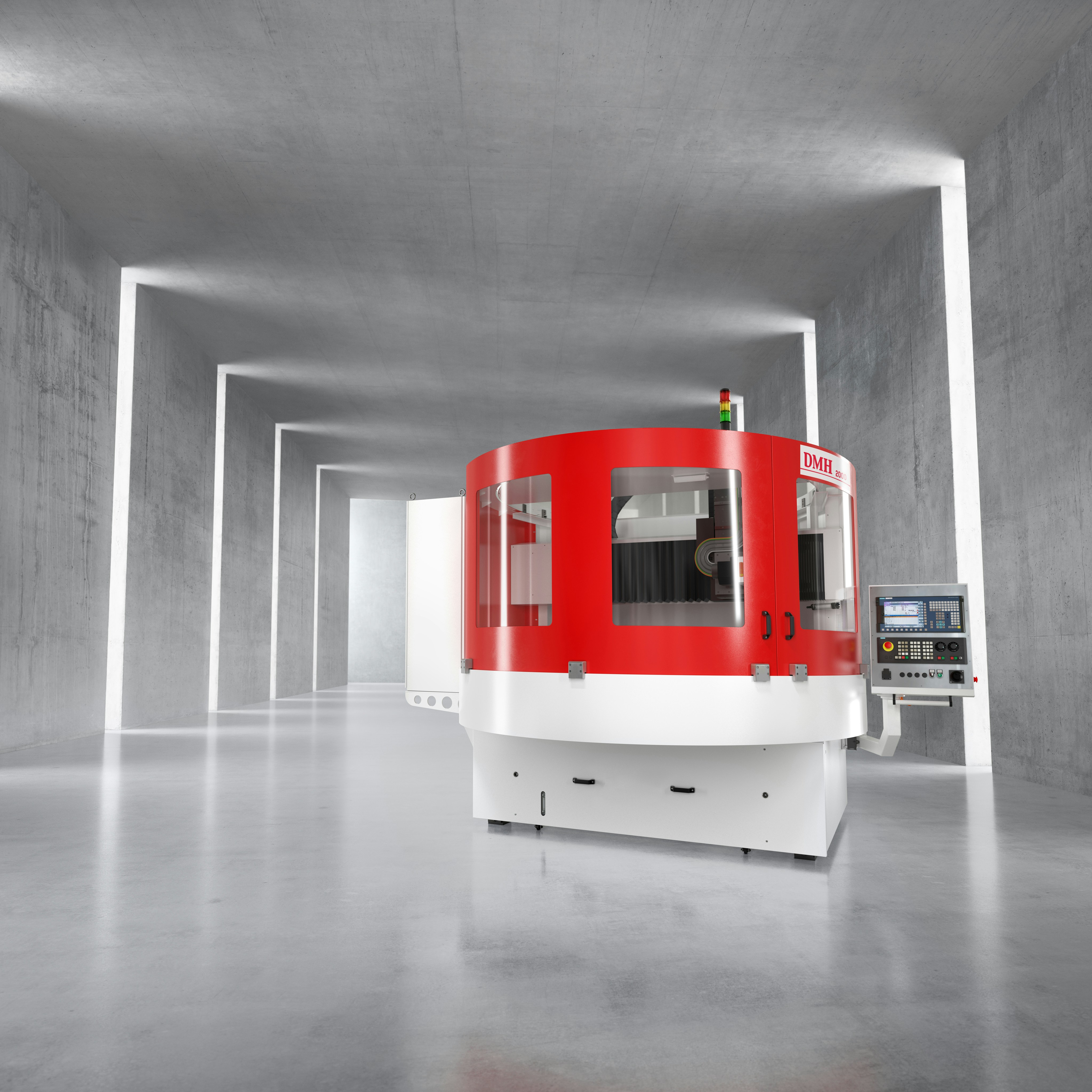

Gasket lathe DMH 2000

XXL SEALS. FOR XXL REQUIREMENTS.

The DMH 2000 is suited to seals with a turning diameter of 600 to 2,000 mm and is our machine for the most exacting requirements: precise, quick, and reliable – even for XXL seals. The material is clamped vertically and the structure is especially stable and space-saving.

Model variants

Max. turning diameter
2,000 MM
c-axis
no
y-axis
no

Product info

01
Application areas
Seal retailers, OEM, MRO, heavy hydraulics, oil and gas
02
Equipment options
The machine is available in the versions V (vertical lathe) and VTM (vertical lathe with driven tools).
03
Scope of delivery
Included in the purchase are software, basic tool kit, clamping system, chopper and suction system.

360° view

Technical details

Fact Sheet

Details	DMH 2000 V	DMH 2000 VTM
Max. turning diameter (without driven tools/with driven tools)	2,000 mm	2,000 mm
Min. turning diameter	800 mm	800 mm
Main drive power	22 kW	35 kW/31 kW torque
Total weight	6,560 kg	6,580 kg
Dimensions (L × W × H)	3,765 × 2,285 × 2,650 mm	3,765 × 2,285 × 2,650 mm
Slide traverse X/Y/Z	1,070/-/400 mm	1,070/-/400 mm
y-axis	no	no
c-axis	no	yes
Max. speed main drive	600 1/min.	600 1/min.
Max. speed driven tools	-	5.000 1/min.
Spindelnase nach DIN 55026	KK8	KK8
Power input	43.6 kW	50 kW/55.5 kW torque
Tool size	VDI 30	VDI 25 VTM
Turret positions	8	8
Rapid traverse X/Y/Z	20/-/20 m/min.	20/-/20 m/min.
Control	Siemens	Siemens
Barfeeder interface	no	no
