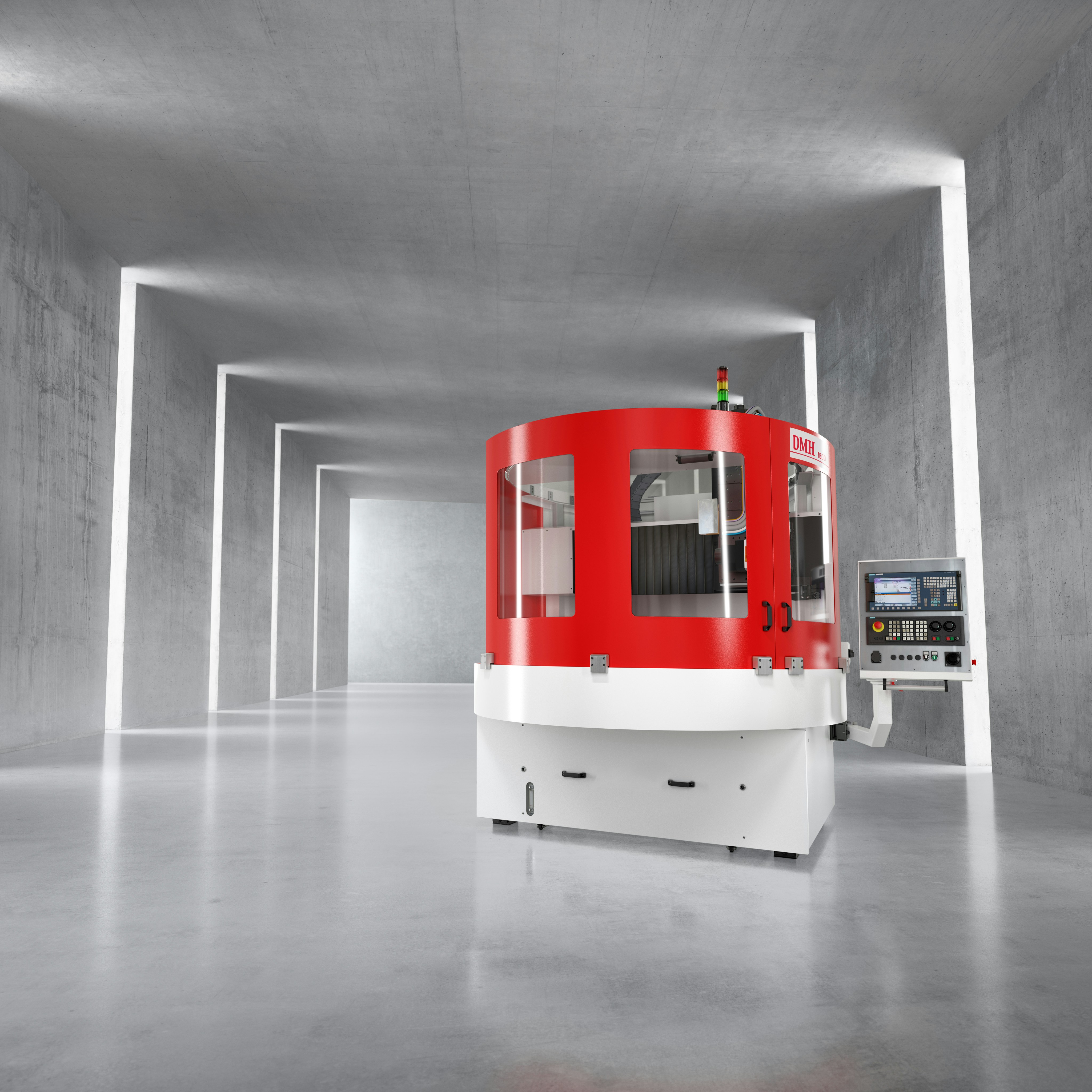

Dichtungsdrehmaschine DMH 1600

VERTICAL CLAMPING. INGENIOUS OPERATION.

The DMH 1600 is suited to seals with a turning diameter of 400 to 1,600 mm and is therefore one of the top performers throughout the market. What makes this machine so successful is the fact that the material is clamped vertically, and that it is designed to be especially stable and space-saving compared to machines from other manufacturers.

Model variants

Max. turning diameter
1,600 MM
c-axis
No
y-axis
No

Product info

01
Applications areas
Seal retailers, OEM, MRO, heavy hydraulics, oil and gas
02
Equipment options
The machine is available in the versions V (vertical lathe) and VTM (vertical lathe with driven tools).
03
Scope of delivery
Included in the purchase are software, basic tool kit, clamping system, chopper, and suction system.

360° view

Technical Details

Fact sheet

Details	DMH 1600 V	DMH 1600 VTM
Max. turning diameter (without driven tools/with driven tools)	1,600 mm	1,600 mm
Min. turning diameter	580 mm	580 mm
Main drive power	22 kW	35 kW/31 kW torque
Total weight	4,980 kg	5,000 kg
Dimensions (L × W × H)	2,850 × 2,360 × 2,575 mm	2,850 × 2,360 × 2,575 mm
Slide traverse X/Y/Z	880/-/400 mm	880/-/400 mm
y-axis	no	no
c-axis	no	yes
Max. speed main drive	6001/min.	6001/min.
Max. speed driven tools	-	5.000 1/min.
Spindle nose per DIN 55026	KK5	KK5
Power input	43.6 kW	50 kW/55.5 kW torque
Tool size	VDI 30	VDI 25 VTM
Turret positions	8	8
Rapid traverse X/Y/Z	20/-/20 m/min.	20/-/20 m/min.
Control	Siemens	Siemens
Barfeeder interface	no	no
